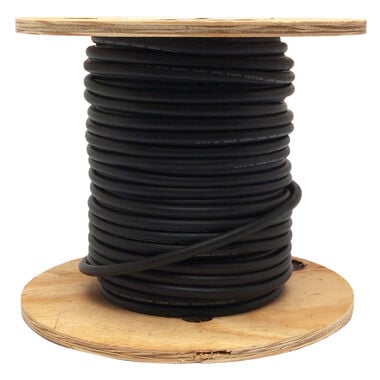

Forney Industries Welding Cable, Number 4, 125 Ft. Reel

Forney Industries Welding Cable, Number 4, 125 Ft. Reel

#4 American Wire Gauge (AWG) x 125' (38.1m) highly flexible welding cable manufactured with 364 strands of fully annealed soft-drawn copper. Highly durable and versatile. Designed for use in stingers/whips, leads and ground clamp welding assemblies as well as battery applications such as chargers and wire harnesses. AWG size: #4. Cable length: 125' (38.1m) coil. Stranding gauge: 30. Conductor stranding: 364. Wall thickness (nominal): 0.060" (1.52mm). Outside diameter (nominal): 0.343" (8.71mm). Cable weight per 1,000' (304.8km): 147 Lbs (67kg). Wrapped paper separator between copper and outer low-smoke, halogen-free EPDM jacket. Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid and transmission fluid. Rated at 600 Volts. Conductor temperature range of -58° F (-50° C) to 221° F (105° C). SAE J1127 compliant. REACH, RoHS, CMRT and Prop 65 compliant. NEC Article 630 (Electric Welders) approved. Suitable for battery use per UL 558 and 583. Made in the USA.
